A perfume bottle is often judged by its appearance. Consumers see shape, color, and texture. However, from a manufacturer’s perspective, capacity is the structural foundation of the entire product.
At Stone Elf, where we specialize in crystal and natural stone perfume bottles, we have produced thousands of customized units across 5 ml, 30 ml, 50 ml, and 100 ml formats. Over time, one thing has become clear: capacity affects everything. It determines drilling depth, wall thickness, scrap rate, tool wear, polishing time, filling compatibility, freight efficiency, and regulatory compliance.
This pillar guide explains:
- The conversion between oz and ml
- Why 3.4 oz (100 ml) became the global standard
- Regional measurement differences
- Engineering parameter ranges behind different capacities
- Scrap rate methodology and efficiency calculations
- Glass vs crystal manufacturing comparison
- Cost structure transparency
- Strategic recommendations for buyers
Unlike general industry blogs, this guide discloses production logic, tolerance ranges, and calculation methodology to improve transparency and professional reliability.
Industry Positioning and Quality Framework Alignment
Stone Elf operates within the high-end natural stone packaging niche, focusing exclusively on crystal and semi-precious stone perfume bottles and decorative components.
While there is no international certification specific to crystal perfume bottle production, our quality management workflow aligns with dimensional control and process consistency principles reflected in frameworks published by the International Organization for Standardization. This includes structured defect classification, batch inspection sampling, and tolerance documentation.
Material durability principles referenced in this article align with mineralogical fracture behavior research frameworks used by the Gemological Institute of America. Although GIA does not regulate packaging, its published materials science research supports the structural logic discussed here.
By referencing recognized measurement and material science frameworks, we ensure that production claims are materially grounded rather than anecdotal.

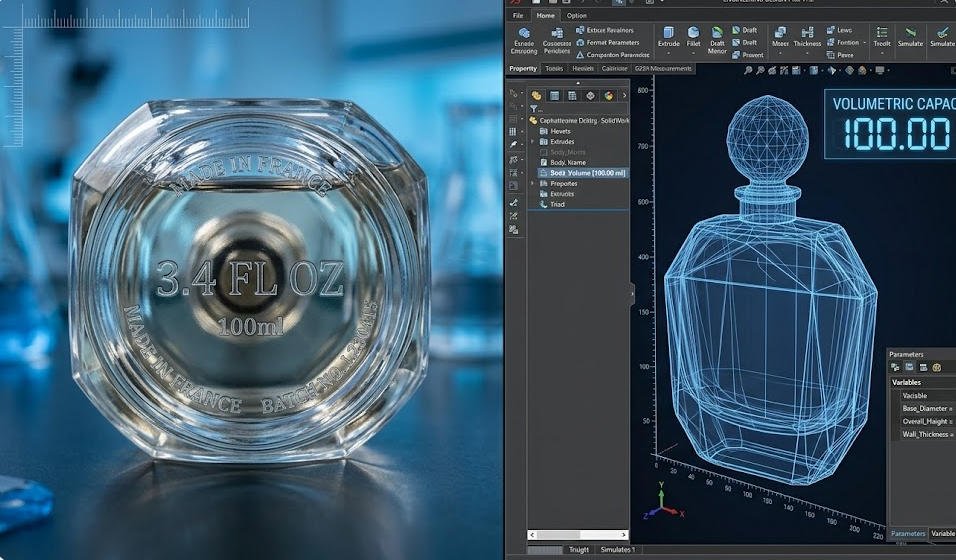

Part I: Understanding Perfume Bottle Capacity Units
OZ vs ML: Engineering and Labeling Logic
Fluid Ounces (fl oz)
In the United States, perfume bottle capacity is typically displayed in fluid ounces.
1 US fluid ounce = 29.5735 milliliters
Factories often approximate 1 oz ≈ 30 ml during early-stage modeling, but official retail labeling must comply with requirements enforced by the U.S. Food and Drug Administration under 21 CFR 701.13 for cosmetic labeling.
Net quantity presentation is also influenced by the Fair Packaging and Labeling Act, overseen by the Federal Trade Commission.
Common industry conversions:
- 0.17 oz ≈ 5 ml
- 1 oz ≈ 30 ml
- 1.7 oz ≈ 50 ml
- 3 oz ≈ 90 ml
- 3.4 oz ≈ 100 ml
Milliliters (ml)
Milliliters belong to the metric system maintained by the International Bureau of Weights and Measures.
All CNC modeling software, volumetric calibration systems, and filling machines operate in metric units. Therefore, ml is the primary engineering reference unit in manufacturing environments.
Part II: Why 100 ML (3.4 OZ) Became the Global Standard
Aviation Regulations and Retail Adaptation
The 100 ml format gained dominance partly due to air travel security rules. According to the Transportation Security Administration, passengers may carry liquids up to 100 ml (3.4 oz) in hand luggage.
Although this rule regulates travel screening rather than packaging design, fragrance brands adapted their bottle sizes accordingly. Over time, 100 ml became the globally accepted “standard full size.”
Marketing Psychology and Cost Scaling
From a manufacturing standpoint, scaling from 50 ml to 100 ml does not double raw stone consumption. Instead, material usage typically increases by approximately 35–45% depending on geometry.
This non-linear scaling creates better cost-per-ml efficiency at 100 ml, which supports retail value positioning.

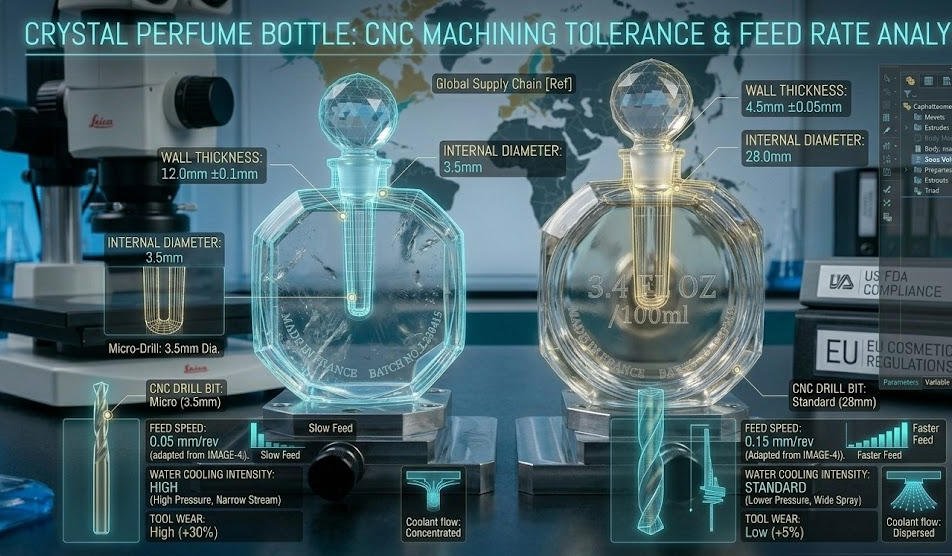

Part III: Engineering Parameters Behind Capacity Differences
Reference Ranges for Drilling and Structural Design
To improve transparency, below are generalized engineering parameter ranges observed in stabilized production:
Internal cavity diameter (typical cylindrical structures):
- 5 ml: 8–12 mm
- 50 ml: 18–22 mm
- 100 ml: 24–30 mm
Wall thickness safety margins:
- 5 ml: ≥3 mm minimum
- 50–100 ml: 4.5–6 mm recommended depending on geometry
Drilling feed rate adjustment:
- 5 ml cavities: 25–40% slower feed rate than 50 ml formats
- Cooling flow must increase proportionally to manage thermal stress
These values are derived from internal production optimization cycles and reflect statistically stabilized averages rather than theoretical assumptions.
Part IV: Why Smaller Crystal Perfume Bottles Are More Difficult
Narrow Cavity and Thermal Stress
Crystal perfume bottles are carved from solid stone blocks. Unlike glass bottles, which are molded hollow, crystal requires post-shaping drilling.
Small cavities restrict heat dissipation and increase friction. This raises micro-crack probability, especially when natural inclusions are present.
Material behavior follows fracture principles consistent with mineralogical research frameworks referenced by the Gemological Institute of America.
Structural Margin Sensitivity
In 5 ml bottles, the margin between cavity and exterior surface may be less than 3–4 mm.
A dimensional deviation of 0.2 mm can significantly reduce structural stability. In contrast, 100 ml bottles distribute mechanical stress more evenly due to greater mass.
Volumetric Tolerance Sensitivity
Capacity deviation impact:
- 0.3 ml error in 5 ml bottle = 6%
- 0.3 ml error in 100 ml bottle = 0.3%
Therefore, small bottles require tighter CNC modeling and stricter verification.
Volumetric Verification Process
To ensure measurable compliance, we apply a hybrid verification system:
- CNC cavity modeling (metric simulation)
- Water displacement testing
- Digital scale calibration (1 g water ≈ 1 ml under standard conditions)
- Random batch sampling validation
Tolerance targets typically follow:
- ±0.2 ml for ≤10 ml bottles
- ±0.5 ml for 30–50 ml
- ±1 ml for 100 ml
Although the U.S. Food and Drug Administration regulates finished cosmetic net content rather than empty bottle cavities, accurate cavity control directly supports fill compliance.
Part V: Scrap Rate and Efficiency Methodology
Methodology Disclosure
Scrap rate in this article is calculated as:
(Rejected Units ÷ Total Finished Units) × 100%
Rejection categories include:
- Micro-cracks after drilling
- Neck misalignment
- Volumetric deviation beyond tolerance
- Structural instability during pump crimping
Data reflects stabilized production batches and excludes early prototype sampling runs.
Observed Scrap Rate Ranges
- 5–10 ml: 10–15%
- 30–50 ml: 6–8%
- 100 ml: 3–5%
Because crystal exhibits natural variability, these represent statistical intervals rather than fixed constants.
Tool Wear and Runtime Comparison
Small-diameter drill bits require more frequent replacement.
Observed runtime difference:
- 5 ml units: 30–40% longer CNC cycle per qualified piece compared to 50 ml
- Polishing correction frequency increases significantly
These factors explain why miniature crystal perfume bottles often cost more per ml.
Part VI: Glass vs Crystal – Manufacturing Difficulty Comparison
Comparative Manufacturing Matrix
| Capacity | Glass Difficulty | Crystal Difficulty | Primary Technical Reason |
|---|---|---|---|
| 5 ml | Low–Moderate | Very High | Crystal requires precision drilling from solid block |
| 30 ml | Low | High | Tight tolerance and breakage sensitivity |
| 50 ml | Very Low | Moderate | Stable structural margin |
| 100 ml | Very Low | Low–Moderate | Optimal efficiency zone |
Glass bottles are mold-blown hollow. Internal volume is formed during molding. Crystal bottles require mechanical cavity drilling, which introduces stress variables.
Part VII: Cost Structure Transparency
Crystal perfume bottle cost structure typically includes:
- Raw stone block
- CNC shaping and drilling
- Tool wear and consumables
- Manual polishing
- QC inspection and rejection allowance
In small capacities:
- Tool replacement frequency increases 20–35%
- Manual finishing time per ml increases 25–45%
- Scrap allowance must be built into quotation
These ranges are multi-batch accounting averages.
Part VIII: Regional Compliance Considerations
United States retail labeling must follow dual-unit presentation rules influenced by regulations enforced by the Federal Trade Commission and the U.S. Food and Drug Administration.
European markets follow metric-only conventions coordinated by the European Commission.
Factories therefore model cavity volume in ml first, then convert to oz for US labeling compatibility.
Part IX: Strategic Capacity Recommendations
Emerging Brands
30 ml or 50 ml offers manageable MOQ, moderate engineering complexity, and premium positioning.
Established Luxury Brands
100 ml remains the most efficient structural and economic choice.
Miniatures should be positioned as marketing tools rather than mass production drivers.
US-Focused Distributors
Dual-unit labeling is essential. Internal tolerance control must support declared net quantity accuracy.
Final Conclusion: Capacity as Engineering Strategy
Perfume bottle capacity is not merely a marketing decision. It influences structural integrity, drilling complexity, scrap rate, tolerance control, and freight economics.
From an engineering standpoint:
- 50 ml and 100 ml provide optimal stability
- Small capacities increase drilling stress and scrap risk
- Larger capacities improve cost efficiency per ml
By disclosing methodology, engineering ranges, and compliance frameworks, this guide aims to improve transparency and professional credibility.
In crystal perfume bottle manufacturing, smaller does not mean simpler. It often means more delicate, more precise, and more technically demanding.
Capacity defines the full lifecycle of a perfume bottle — from raw stone block to finished luxury product.
